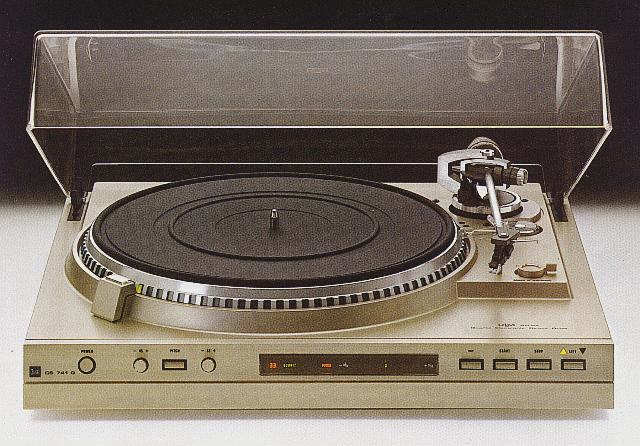

DUAL CS741Q Turntable |
|
Specifications: |
Two Speed (33.33 & 45) RPM |
| Fully Automatic Operation | |
| Anti Skating Control | |
| Ultra Low Mass Alloy Tonearm | |
| Front Panel Controls | |
| Cueing | |
| Pitch Control | |
| Strobe Light and optoelectronic | |
| function indicator on front panel | |
Spec Sheet Data: |
Quartz Stabilized electronic direct |
| drive system. | |
| Start Up Time: (33.33 RPM) 1-1.5 | |
| seconds | |
| Platter: Non Magnetic - Removable | |
| Speeds switched electronically, quartz | |
| stabilized, 312mm, 1.45 kg | |
| Pitch Control: 12% via adjustable | |
| variable resistor. | |
| Wow & Flutter: | |
| DIN: 0.025% WRMS: 0.015% | |
| Rumble: | |
| Unweighted: 56dB | |
| Weighted: 80dB | |
| Tonearm: Distortion free "Ultra Low | |
| Mass" in 4 point gimbal mounting | |
| 4 Point tip bearing. 221mm | |
| Tracking Force: 0 to 2 grams | |
| Cartridge Weights: 4.5-10 grams | |
| Including Mounting Hardware | |
| Freq Response: 10-30,000 Hz | |
| Anti Resonator Tuning: +/- 12 | |
CS 741Q: |
|
| Years Manufactured: | 1981-83' |
| Price (New): | $500.00 (USD) |
| Also available as theCS 741Q-60 with | the Ortofon TKS60E cartridge. |
| Years Manufactured: | 1981-83' |
| Price (New): | $650.00 (USD) |
|
|
|
